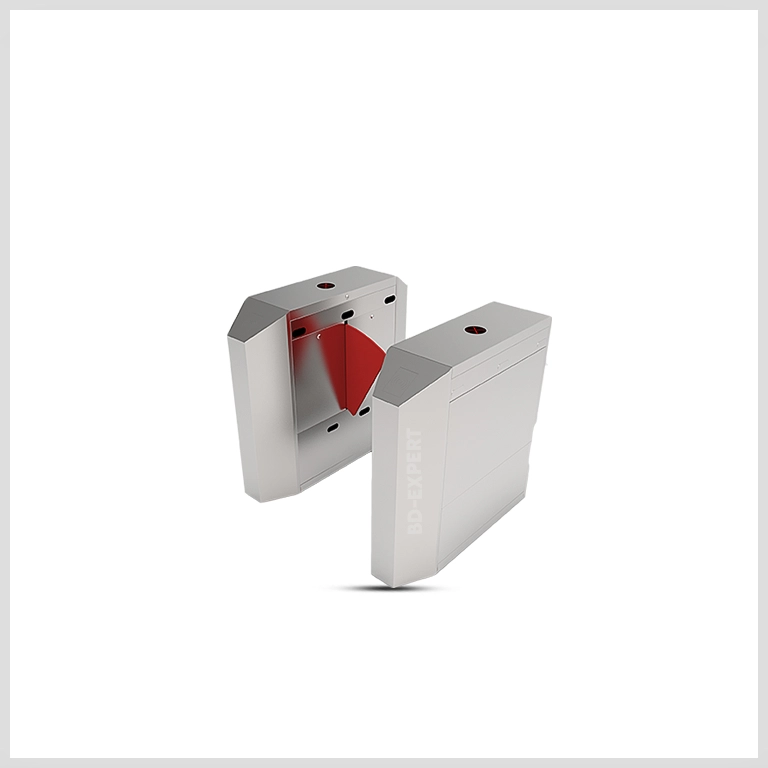

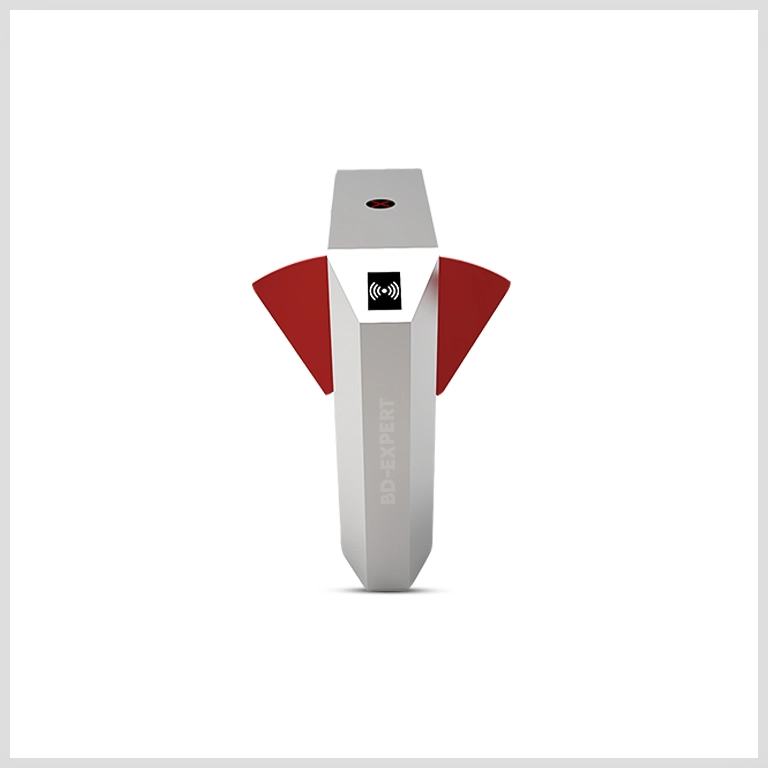

The ZKTeco FBL2200 dual-lane flap barrier turnstile is an elegant, cost-effective entrance control system designed for high-traffic volume.
The FBL2200 series should work together with the FBL2000 series to build multiple lanes.
Reliability
• SUS304 stainless steel casework ensures long-lasting durability
• High-quality electrical components
Safety Features
• Barriers retract automatically during emergencies
• Barriers retract automatically during power outages with battery installed
• All smooth finish. No exposed screws.
• Ergonomic design makes card and fingerprint authentication fast & simple for users.
Built-in Reader Integration
• FBL2200 series ships already integrated with our customers’ preference for either card or fingerprint access control reader. This greatly reduces installation time & expense.
• FBL2200 series and associated access control readers are all factory-tested before shipping.
•ZKTeco provides true plug & play turnstiles with the lowest possible total cost of ownership in the industry.
Simplification
• LCD on the flap barrier control board, easy operation.
Parameter FBL2200
| Power requirements | AC 100 ~ 120V/200 ~ 240V, 50/60Hz | |
| Working temperature | -28℃~60℃ | |
| Working humidity | 5%~80% | |
| Working environment | Indoor/outdoor (if sheltered) | |
| Speed of throughput | RFID | Maximum 30/minutes |
| Fingerprint | Maximum 25/minutes | |
| Lane width(mm) | 600 | |
| Footprint(mm*mm) | 840*1150 | |
| Dimensions(mm) | L=1150,W=300,H=1000 | |
| Dimension with packing(mm) | L=1310,W=410,H=1250 | |
| Net weight(kg) | 68 | |
| Weight with packing(kg) | 99 | |
| LEDÂ indicator | Y | |
| Cabinet material | SUS304 Stainless Steel | |
| Lid material | SUS304 Stainless Steel | |
| Barrier material | Acrylic | |
| Barrier movement | Retracting | |
| Emergency mode | Y | |
| Security level | Medium | |
| MCBF | 2Â million | |
