Basic Info.
Product Description

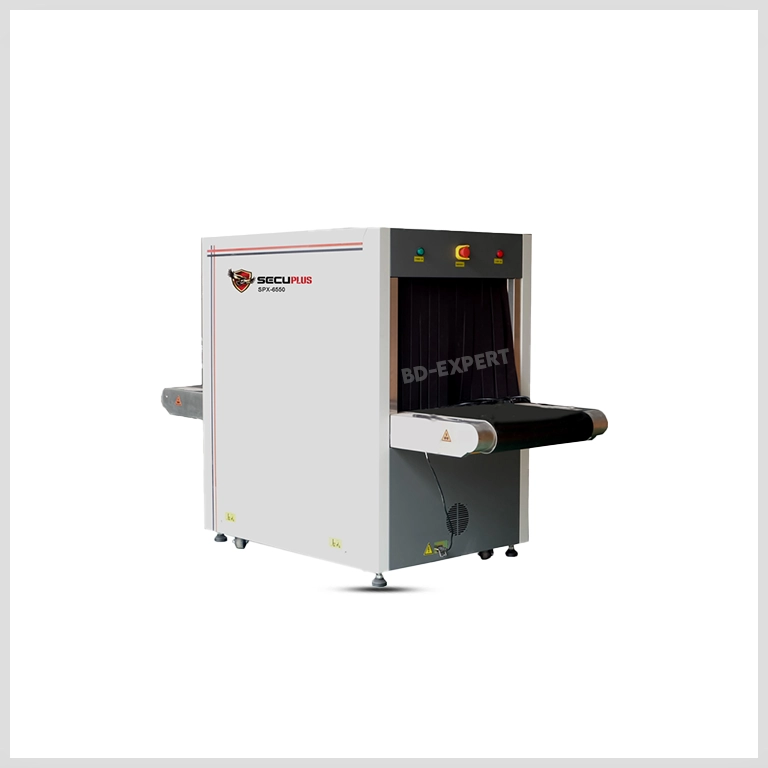

650 (W) * 500 (H) mm SECU PLUS X Ray Baggage Scanner Security Equipment SPX-6550
1. Carry one year quality waranty.
2. Technology supports all life free of charge.
Advantages
1. Updated friendly operation software
2. Perfect scanning image at high resolution
3. Precise structure design, no cropping from corners
4. Automatic sensor roller
5. Famous brand generator & detector
FUNCTION of X-RAY SECURITY INSPECTION DETECTOR MACHINE:
(1) ALARM BY SOUNDS & LIGHT: ALARM BY SOUNDS AND LIGHT WHEN CONFORMS TO CONDITION.
(2) The network interface COULD BE CONNECTED TO THE LOCAL AREA NETWORK AND SUPPORT MULTI-TERMINAL CHECK BAGGAGE AT THE SAME TIME
(3) SAFETY RAYTRANSMIT RAY UNDER AUTOMATIC CONTROL, AVOIDS THE MISS.
(4) SIMPLE OPERATION BY MOUSE WITHOUT KEYBOARD AND WORK TABLE, CONTROL BY MOUSE, SAVE SPACE.
(5) TURN OFF BY A KEY CONTROL TURN OFF THE MACHINE ONLY NEED ONE STEPREVOLVES THE KEY. THE EQUIPMENT AUTOMATICALLY SECURES CLOSE-DOWN, DOES NOT NEED MANY COMPLEX STEPS, AND IS SIMPLER.
(6) EAGLE-EYE COULD BE EXPEDIENTLY OBSERVING ENLARGEMENT AREA.
(7) ESTIMATE MALFUNCTION BY SELF-AUTOMATIC ESTIMATE MALFUNCTION AND PROMPT MESSAGE, HELPFUL FOR THE MAINTENANCE.
General Specifications:
| Tunnel size | 653*505mm (w*h) |
| Conveyor speed | 0.20m/s |
| Conveyor height | 693mm |
| Max Load | 170kgs |
| Wire Resolution | 38AWG |
| Spatial resolution | Vertical: diameter 1.0mm, horizontal: diameter 1.0mm |
| Penetration | 34mm steel panel |
| Monitor | 21.5 inch, High resolution 1280*1024 |
| X Ray generator anode voltage | 160KV (Working at 150KV) |
| Cooling/operation cycle | Oil Cooling /100% |
| X-ray Dose per inspection | < 1.14 USv |
| Image processing | Pseudo color/black & white image, Negative Image, High Penetration, Super-enhancement, histogram equalization, check back/forward, Automatic save image |
| Zoom | Variable zoom up to X64, support continuous magnification. |
| Image Checking | Continuous check back image |
| Storage capacity | Can store more than 100000 images |
| Radiation leakage | <0.5 USv/h(5cm away from fame), in full compliance with all international radiation safety requirements. |
| Film safety | In accordance with ASA/ISO1600 film safe standard |
| System function | F1, F2, F3 programmable key, high density alarm, TIP; date/time display, baggage Count, User management, System work timing, Radiation timing, self-inspection while power on, save and search image, automatically maintenance and diagnosis system, image recognition training. |
| Optional function | Video surveillance system, LED prompt screen, bi-direction scan, voltage stabilizer, UPS back up |
| Frame size | 2043*901*1384mm (L*W*H) |
| Weight | 500kg |
| Environment temperature/humidity | – 3ºC~+40ºC / 5%~95%(non-condensing) |
| Storage temperature/humidity | -43ºC~+60ºC / 5%~95%(non-condensing) |
| Power | 220VAC (+/-10%) 50+/-3HZ |
| Consumption | 0.7A |
| Noise Level | <55db |
