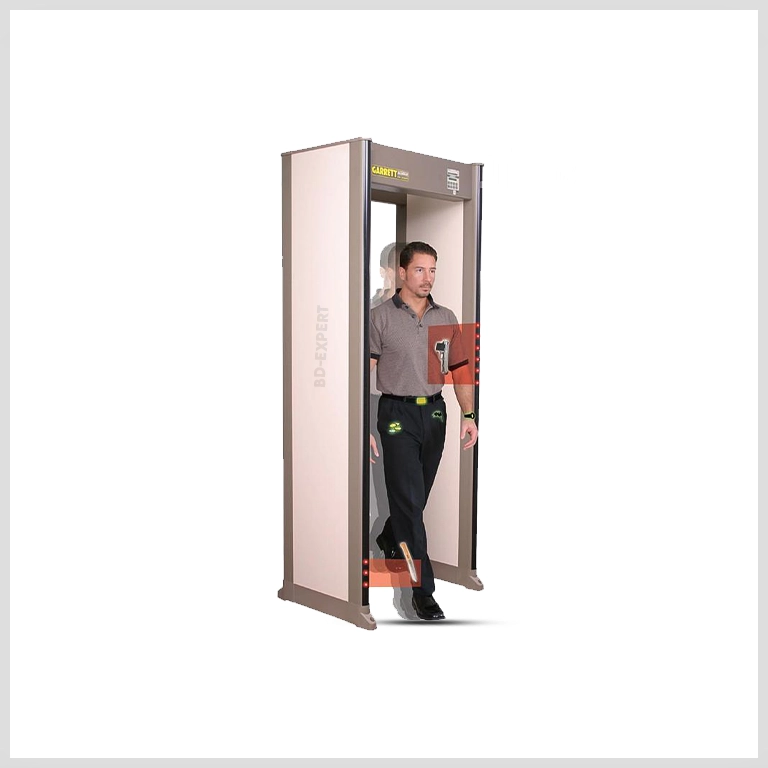

Garrett PD 6500i Archway Gate

Garrett PD 6500i  Walk-Through Metal Detectors archway Security gate 33 Zone

Name: Garrett PD 6500i walk through metal detector

Brand: Garrett

Origin: USA

Specialty: 10-30 hours Battery Backup

Usage: Security Check

Certification: CE/ROHS/ISO9001

Type: 33ZONES / MULTIZONE

Detector: Common Metal

Walk through metal detector using for maintaining high security any area like Shopping Mall, School, Airport, Prison, Court, Bank, Hotel, Conference, Sports Events, etc. ; Factory Security, the detection channel is divided into 6zone,12zone,18zone,33zone and more zones, column configuration warning indicator, door frame made of high strength casting material, high-grade materials, beautifully designed, the product is designed to use with high sensitivity metal detector, more reliable high demand for electronics factory anti-theft security. Walk through Metal Detectors archway Security Gate will help you keep the peace of mind any security issue Germany Computer And Telecom Limited will provide you original and imported product. Please contact us for any query feel free any places from Bangladesh.

Description:

Garrett’s PD 6500i is an industry leader with superior pinpoint technology and unmatched discrimination features. This detector has proven its effectiveness at moving high volumes of patrons through such events such as the Olympic Games, World Cup 2010 South Africa, and the Pan-American Games in Mexico. The PD 6500i has also been trusted to safeguard international airports, hotels, government buildings, and correctional facilities. With its advanced networking and ability to pinpoint targets in 33 detection zones, the PD 6500i is the walk-through of choice for security professionals worldwide.

Main Features:

Standard Programs: Over 20 application programs included.

Sensitivity: Up to 200 distinct sensitivity levels.

Zone Indications: 33 independent zones

Overhead Control Unit: All electronics—LCD, alarm light, LED bar graph, control touch pads—

Integrated to eliminate wire Exposure.

Tamper-Proof Settings: Three access levels of security clearance.

Self Diagnostic Program: Complete and automatic.

Zone Sensitivity Boost: Adjustable in six areas

Battery Pack: (optional) 10-hour or 30-hour backup available.

Warranty: 24 months, Limited Parts/Labor

Passageway Interior Size:

Width 30″ (0.76 m)

Height 80″ (2.03 m)

Depth 23″ (0.58 m)

Overall Exterior Size:
Width 35″ (0.90 m)

Height 87″ (2.21 m)

Depth 23″ (0.58 m)

Shipping Size Width:
35.5″ (0.90 m)

Height 91.5″ (2.32 m)

Depth 6.25″ (.16 m)

Shipping Weight: 165 lbs. (74 kg)

Temperatures:
Operating: -4º F (-20º C) to +149º F (65º C)

Humidity to 95% non-condensing

Storage: -40º F (-40º C) to 158º F (70º C)

Power:
Fully automatic 100 to 240 VAC, 50 or 60 Hertz, 45 watts; no rewiring, switching or adjustments needed.

Regulatory Information: Meets international airport standards such as TSA, ECAC, STAC, AENA, CJIAC, DFT. Meets additional standards and requirements such as USMS, NIJ-0601.02, NILECJ. Meets

Electrical Safety and Compatibility Requirements for CE, FCC, CSA, IEC, ICNIRP, IEEE.
Weatherproofing: Meets IP 55, IP 65, IEC 529 Standard for moisture, foreign matter protection. Construction: Attractive scratch and mar-resistant laminate. Detection Heads and Support: heavy duty aluminum.

Control Outputs: Solid state switches (low voltage AC or DC) for operating external alarms and control devices.

Remote Control (optional): Desktop Remote Control with Zone Indication and/or via network with CMA Interface Module.

Networking (optional): Manage individual or groups of walkthroughs and perform statistical analysis of throughput.

Alarm Indicators/Random Alarm Feature:

33 zones, volume-adjustable audible tone, bright LED visual and remote alarms. Random alarm feature; adjustable from 0 to 50 percent.

Optional Features:
Multi-brand compatibility: Can be added to existing checkpoints without having to replace other brand units. Includes multiple channels and 2,300 selectable operating frequencies.

Advanced broadband technology: Analyzes targets across a broad range of frequencies for greater accuracy. Provides superior ferrous and non-ferrous detection. Improved discrimination means fewer false alarms and higher throughput.

Optimum Performance: More than 20 standard program settings scientifically engineered to address the needs of airports, courthouses, prisons, schools, facilities, special events, mass transit, loss prevention, and other applications.

More accurate pinpointing: With more than four times the detection coils of competitive models, the PD 6500i provides uniform detection and precise pinpointing. Independent zone indicator lights on both

Side panels identify not only height but also left, center and right locations for one or more objects passing through the archway.

Dual-sided detection: This unique bilateral technology has transmitters and receivers in each side panel

to allow scanning from both sides, resulting in uniform detection throughout the archway. It also provides superior noise cancellation resulting in easier setup (i.e. no need to rotate the unit to avoid interference from nearby equipment such as other metal detectors or x-ray machines).

Pacing lights: Universal “wait” and “proceed” symbols at the detector entrance for traffic controls.

Superior versatility: Menu based settings for feature selection such as alarm indication, count method, and language without the use of a computer. Field programmable to allow system upgrades. Multiple units can be installed as close as 2 inches.

Advanced networking (optional): Manage walkthroughs individually or as groups and perform statistical analysis via network with CMA interface module. Supervisors can remotely access controls, visual alarms and statistics.

Superior versatility: Menu based settings for feature selection such as alarm indication, count method, and language without the use of a computer. Field programmable to allow system upgrades. Multiple units can be installed as close as 2 inches.

Directional counter: Four settings for counting patrons: forward only, reverse only, subtract in reverse, and bidirectional.

International security standards: PD 6500i meets the world’s highest test certifications, including the

Following international airports:

• TSA (U.S. airports)
• ECAC (European airports)
• STAC (French airports)
• AENA (Spanish airports)
• CJIAC (Japanese airports)
• DfT (U.K. airports)

Temperatures:

Operating: -4° F (-20° C) to +149° F (65° C)
Humidity to 95% non condensing
Storage: -40° F (-40° C) to 158° F (70° C)

Power:

Fully automatic 100 to 240 VAC, 50 or 60 Hertz, 45 watts; no rewiring, switching or adjustments needed.

Weatherproofing / Foreign Object Protection Standards:

Meets IP 55, IEC Standard. “Degrees of Protection provided by Enclosures,” IEC 529. *IP 65 optional.

Target Pinpointing Lights:
Thirty-three (33) distinct zones are displayed with two (2) independent columns of LEDs located on exit side of PD 6500i.
Programs:
More than Twenty (20) independent programs designed to meet all installation specific requirements including ECAC requirements for European airports and TSA requirements for U.S. airports.
Multi-Unit and Multi-Brand Compatibility:
2,300 selectable operating frequencies and multiple channels allow the PD 6500i to operate in close proximity to other PD 6500is as well as with non-Garrett walk-throughs.
Interference Suppression:
Advanced analog and digital filtering—as well as adjustable operating frequencies—eliminate the potential effects from x-ray units, radios and other electrical interference sources.
Directional Counter:
Counter tracks the number of patrons that have passed through the detector, the direction of patrons, the number of alarms and calculates alarm percentage. Four directional count settings (forward, reverse, subtraction reverse and bi-directional).
Random Alarm Feature:
Provides ability to randomly alarm on a selected percentage of non-alarming persons; adjustable from 0 to 50 percent.
Alarms:
Audible tone and volume adjustable. Bright LED visual alarm.
Pacing Lights:
International symbols located at entrance.
Tamper-Proof:
All settings are secured with a key lock and two levels of access codes. Further security is accomplished with a cabinet lock which prevents unauthorized access to physical cables, connectors and electronics.
Control Outputs:
Solid state switches (low voltage AC or DC) for operating external alarms and control devices.
Construction:
Attractive scratch and mar-resistant laminate. Detection Heads and Support: Heavy duty aluminum.
Warranty:
24 months, Limited parts and labor
